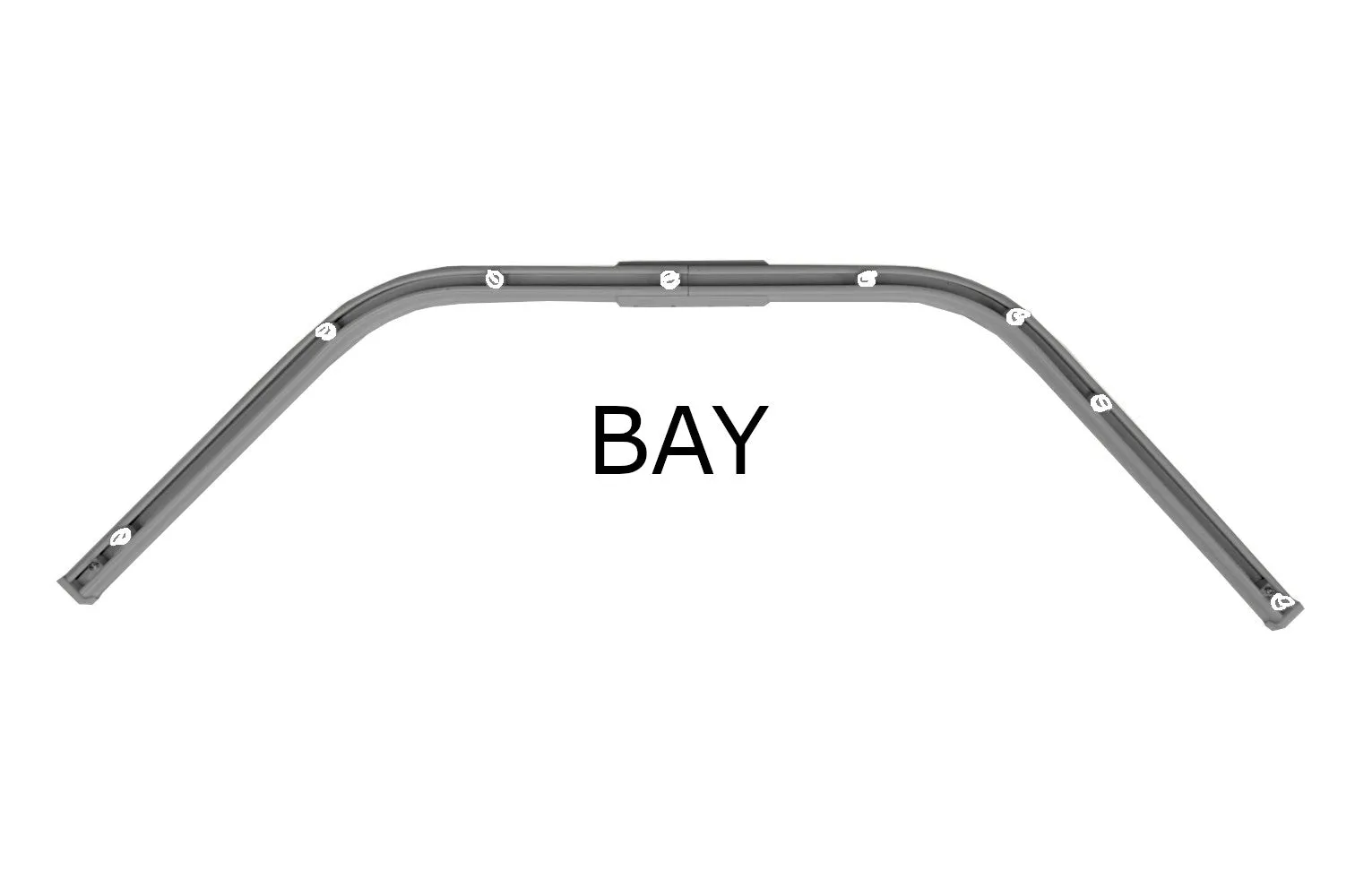

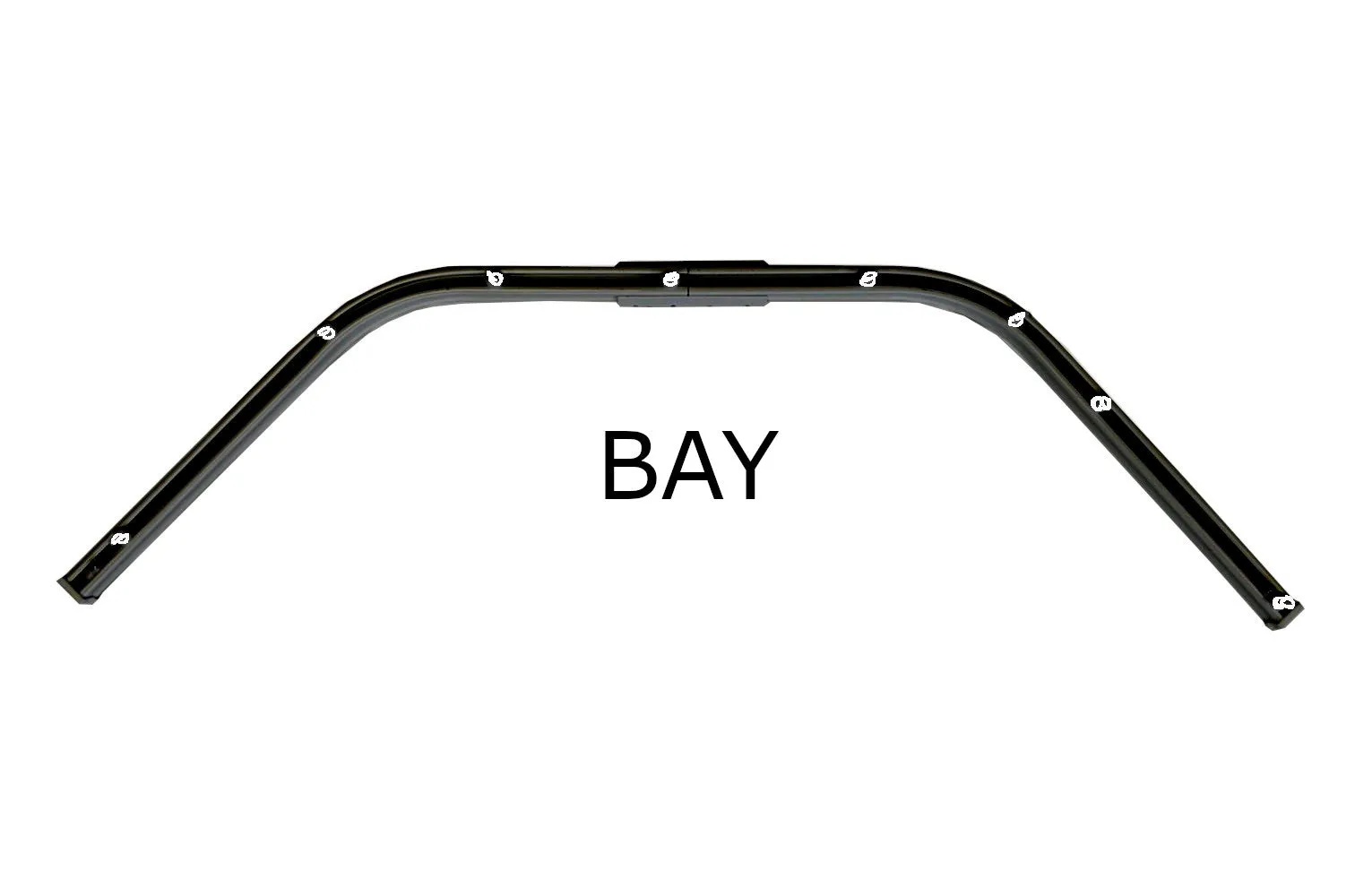

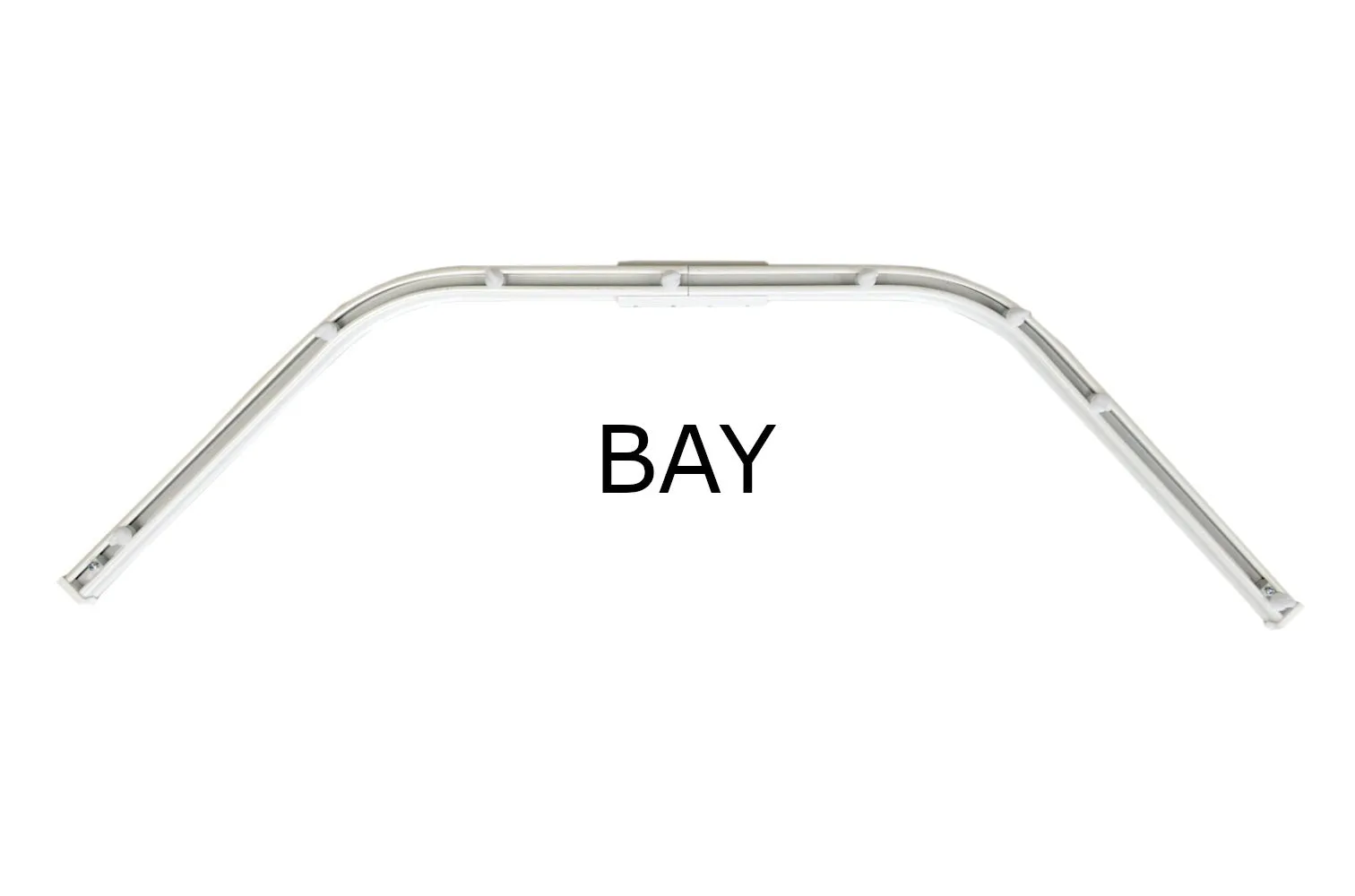

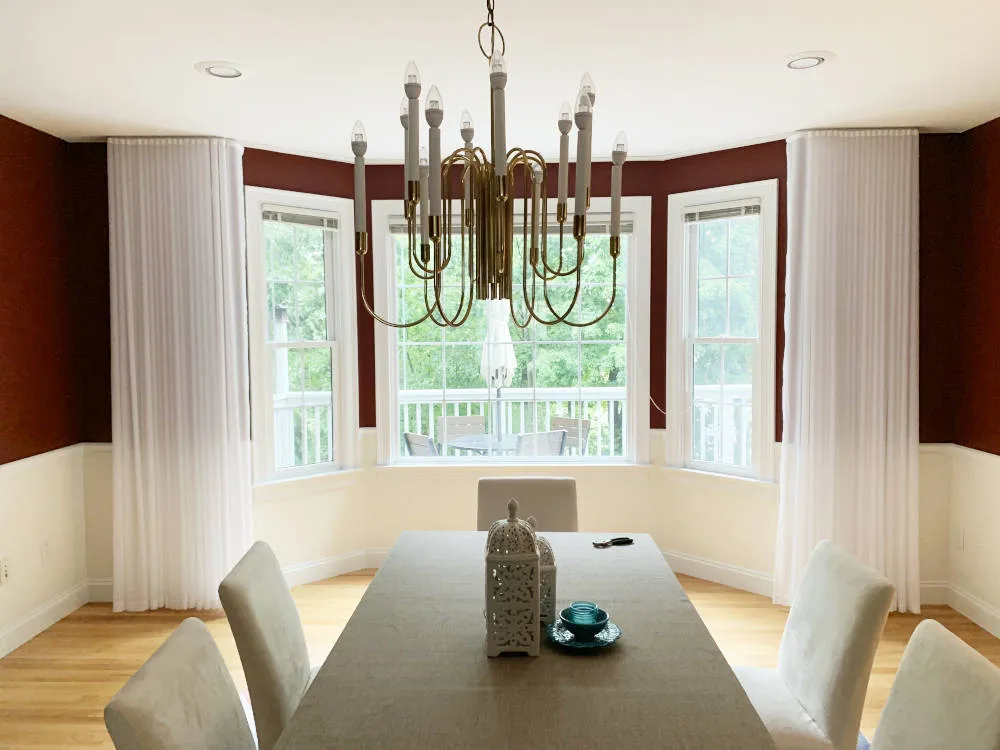

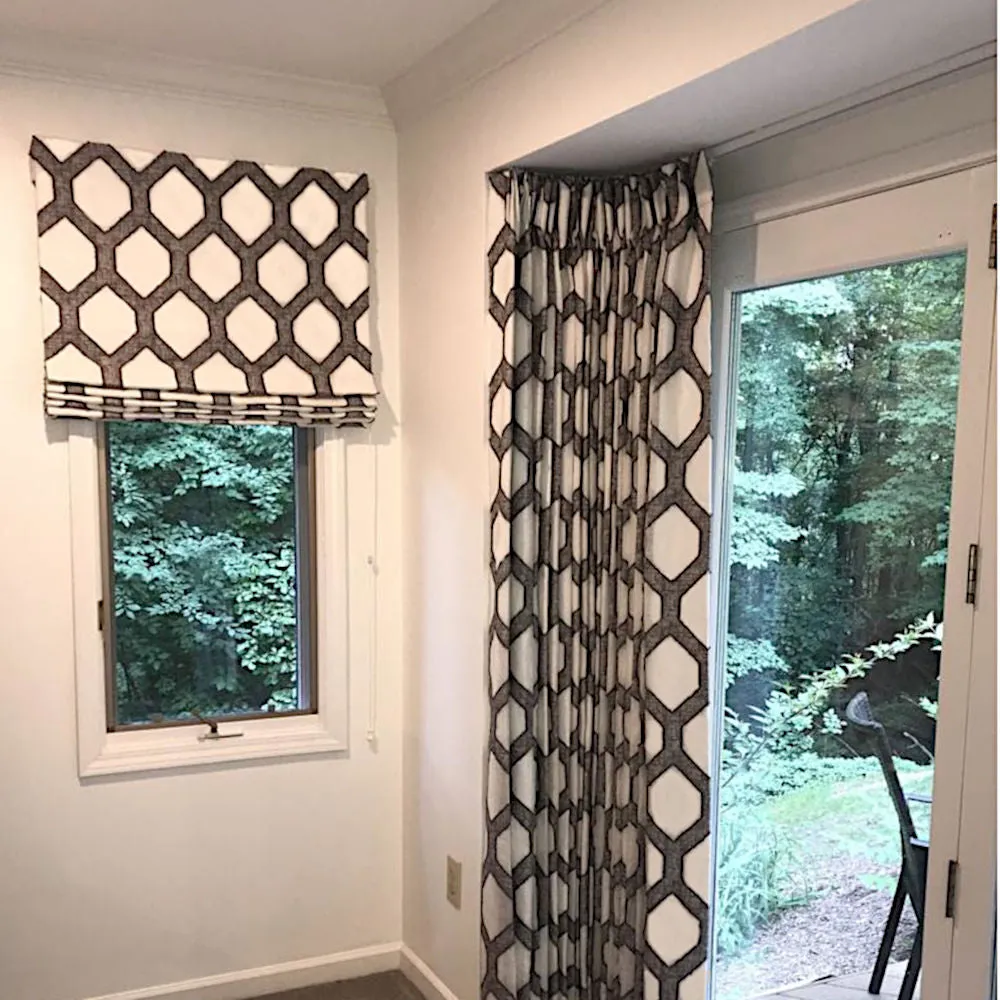

Wall or ceiling mount bay window curtain track sets using our KS (1/2")  aluminum curtain track with angled bends.

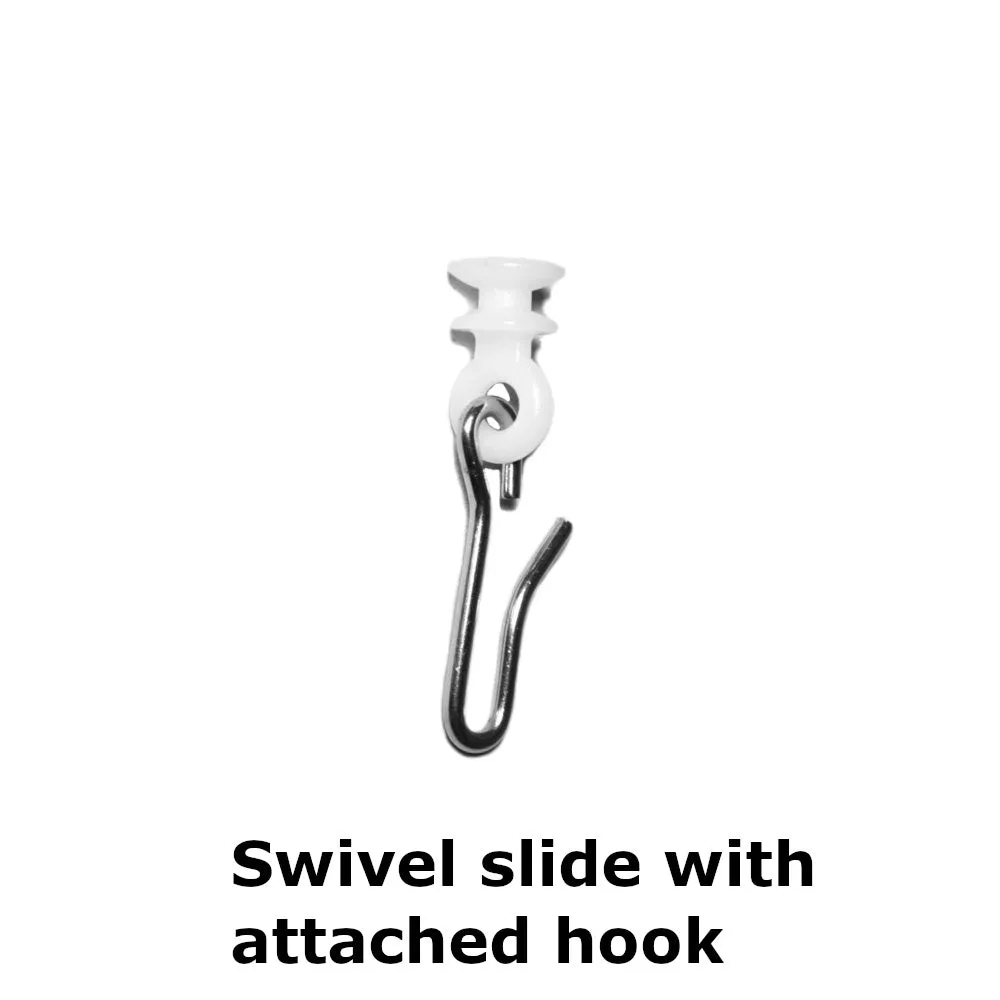

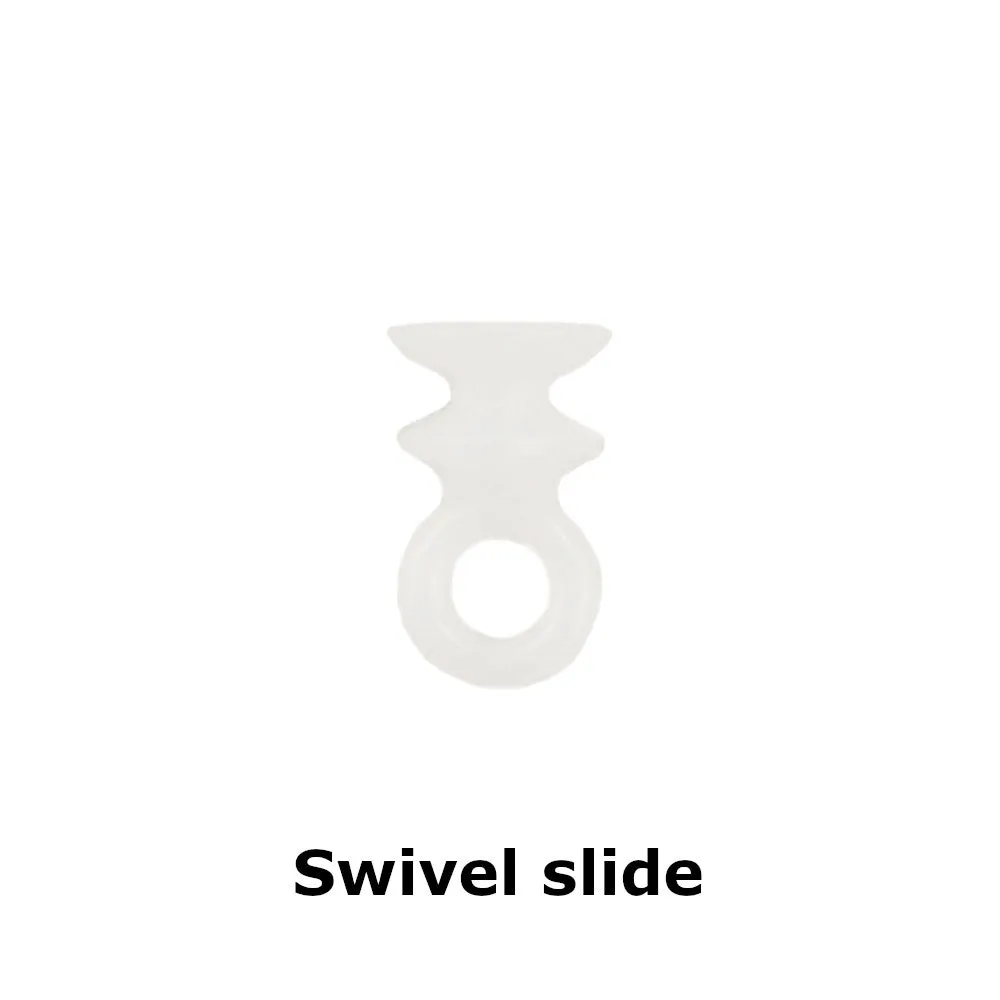

If you select the wavefold carrier, please view the links on the to learn more.

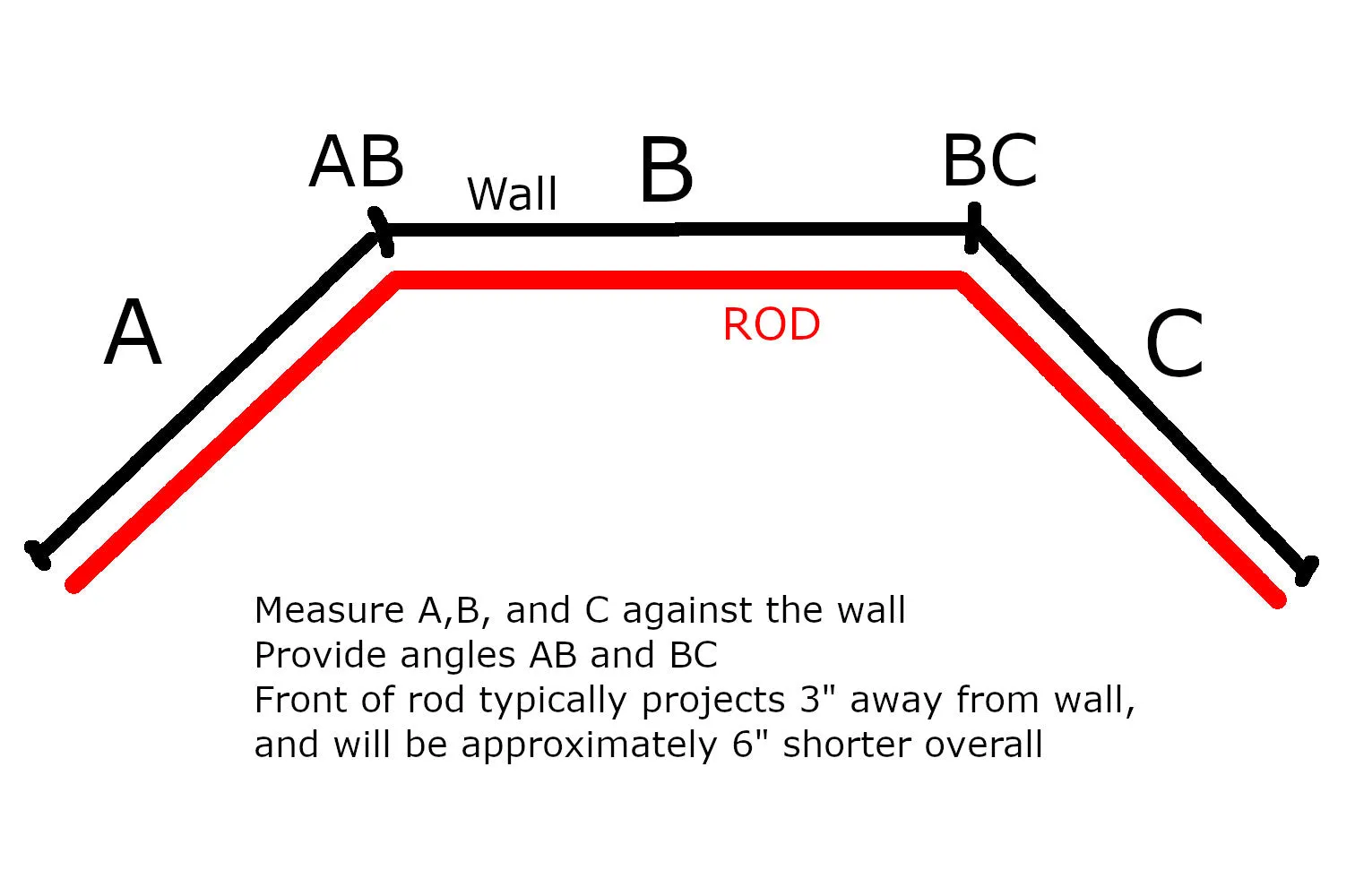

Take careful measurements against the wall and provide the 3 dimensions. From the start of the track on the left to the corner (A), from corner to corner (B), from corner to end of  track on the right side (C). Also carefully measure and provide the 2 angles. It is important to be very accurate with dimensions and angles. You can measure the angles by putting two index or business cards together and forming the angle. Staple or tape them together and then put them on a paper protractor that you can print online. The standard bay angle is 135 degrees.

We will draw a template of the wall, based on the dimensions you provide, and redraw the track 3" in front of the wall; the standard projection for curtain tracks. The track ends up smaller than the wall dimensions, but we will determine that size. If you need a different projection than 3", let us know in the special instruction box in the shopping cart.

The KS is a strong, yet small, quality track that holds a maximum of 3 lbs per foot. It has great splices and patented lubrication. The KS bend radius is 4". Smaller bays will have a splice in the middle. Larger bays will likely have 2 splices.
